Coiled Tubing Equipment

Vita's Coiled Tubing Equipment can be used in uncased holes, and does not require a wellhead attachment. The CTU’s serviceable design is easily maintained, and allows various size tubing for different applications and well depths.

Equipment Specifications
  • Pull Rating: ≤ 40,000 LBS (18,150 Kgs)
  • Well Depth: ≤ 10,000 FT (3,050M)
  • Tubing Diameters: 1 - 1.75 In (2.54 - 4.45 cm)
Equipment Options
  • Custom Color and Paint Specifications
  • Winterization Package Options
    • Battery Warmer
    • Engine Oil Pan Heater
    • Coolant Heating System
    • Extreme Weather Insulation
    • Overnight Heating Package w/ Convenient Plugs and Battery Charger
Equipment Performance Enhancing Features
  • Hydraulically Controlled Mast Eliminates the Need for an Onsite Crane
  • Remote Control of Hold Down Rollers Which Can Allow the Passage of Tubing Couplings and Down-Hole Tools
  • Rig-up & Rig-down In a Matter of Minutes
  • Superior Serviceability
  • Composite Groove and Hold Down Rollers Significantly Decreases Surface Wear on Tubing
  • Injector Tubing Straightening Device Erases Tubing Bending Memory, Minimizing Helical Tubing Effect In Well
  • Requires Only Two People for Operation
  • Significantly Reduces Learning Curve for Ease of Operation

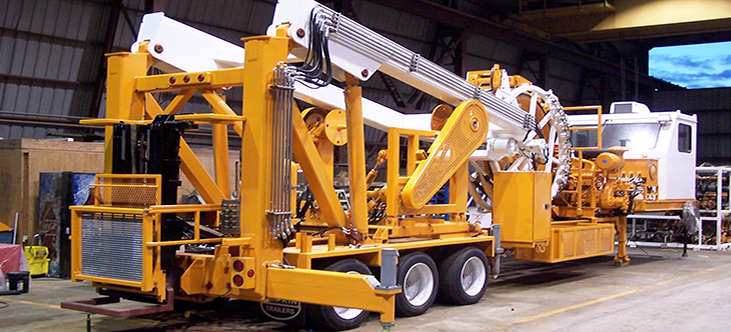

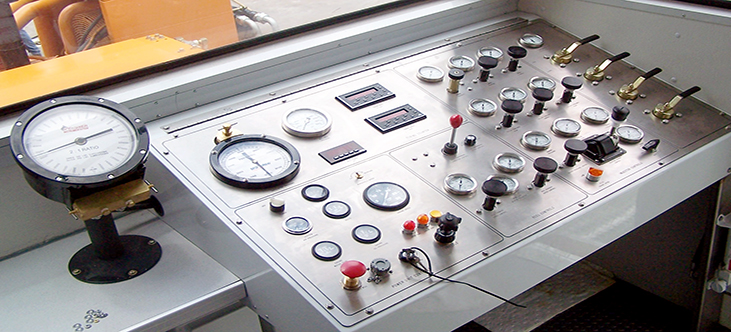

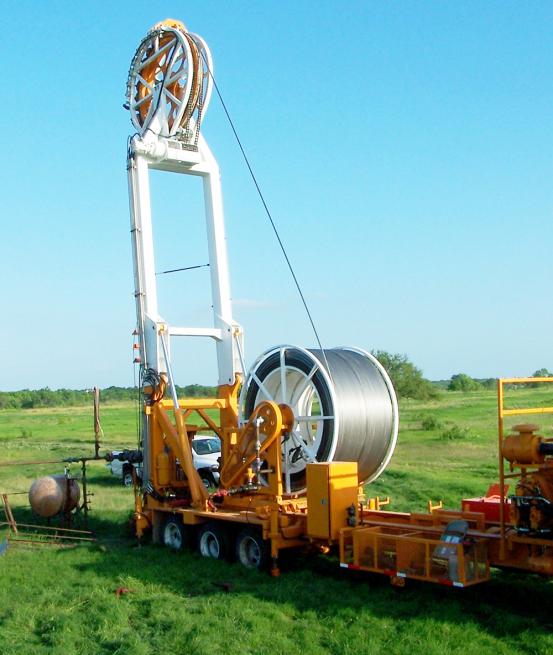

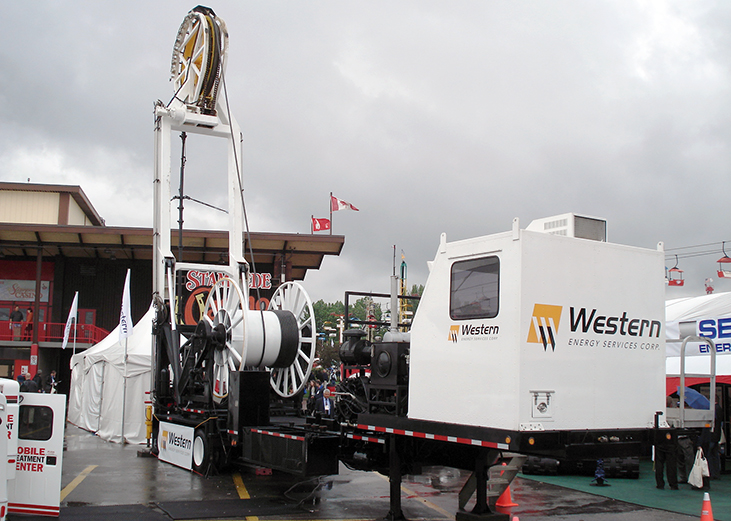

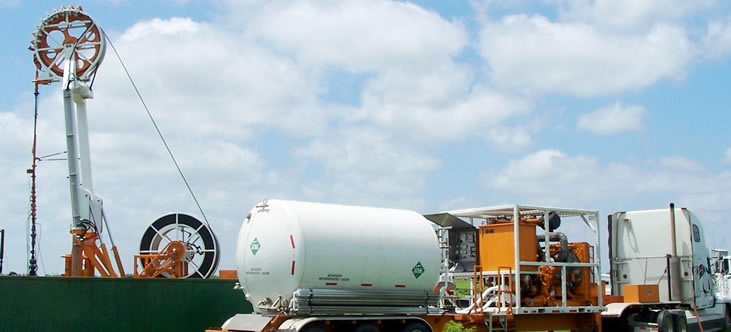

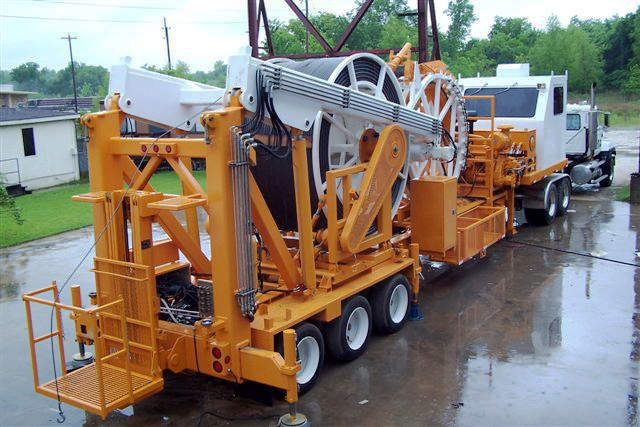

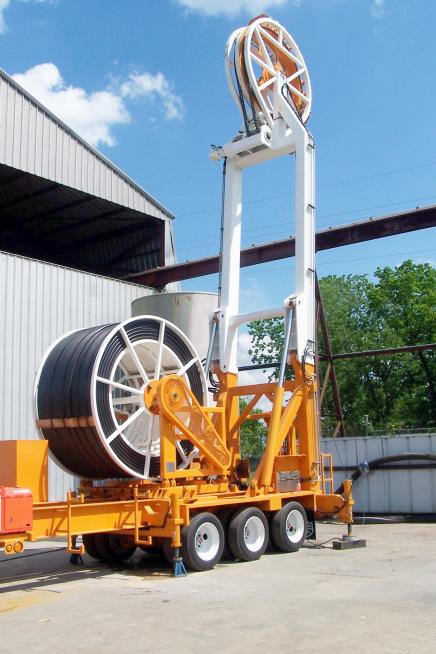

 Coiled Tubing Equipment Image Library




Vita’s N2 systems are the result of two decades of research and development, and are engineered to optimize operational performance. Each unique piece of equipment has a wide range of customization options and performance enhancing features that provide our clients with the latest technology to achieve maximum capacity, efficiency and reliability.
